SKU#: OS80010013

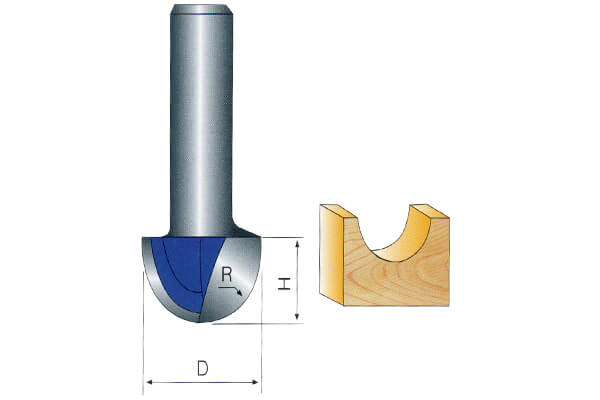

Core Box Bits
Precise sgear and hook angle.
End of bit relief allows for fast plunging.
Ideal for cutting work tops.
Suitable for cutting all wood worktops.
SPECIFICATIONS:
Professional, Very Good strength and intensity, High cleaness &durability, Long service life;
Special design, combined hard cutter body and high-class cutting edge, High working efficiency, good value;
Micro-grain carbide tips to make sure bits sharp and durable.Cutting surface is finished, without burrs. Package is modern, save and beautiful.
Special design, combined hard cutter body and high-class cutting edge, High working efficiency, good value;
Micro-grain carbide tips to make sure bits sharp and durable.Cutting surface is finished, without burrs. Package is modern, save and beautiful.
| Art No. | Size(inch) | Diameter(mm) | Radius(mm) | Work Width(mm) | Work Thickness(mm) |
| OS060220150 | 1/4X3/16 | 13.76 | 2.38 | 2.38 | 5.38 |
| OS060220200 | 1/4X1/4 | 15.36 | 3.17 | 3.17 | 7.00 |
| OS060220250 | 1/4X5/16 | 20.94 | 3.97 | 3.97 | 8.00 |
| OS060220300 | 1/4X3/8 | 22.50 | 4.76 | 4.76 | 9.00 |
| OS060220400 | 1/4X1/2 | 25.70 | 6.35 | 6.35 | 11.00 |
| OS060220500 | 1/4X5/8 | 28.88 | 7.96 | 7.96 | 12.00 |
| OS060220600 | 1/4X3/4 | 32.00 | 9.52 | 9.52 | 15.00 |
| OS060220700 | 1/4X7/8 | 35.20 | 11.10 | 11.10 | 16.00 |
| OS060221000 | 1/4X1 | 38.40 | 12.70 | 12.70 | 18.00 |
| OS060240150 | 1/2X3/16 | 13.76 | 2.38 | 2.38 | 5.38 |
| OS060240200 | 1/2x1/4 | 15.35 | 3.17 | 3.17 | 7.00 |
| OS060240250 | 1/2x5/16 | 20.94 | 3.97 | 3.97 | 8.00 |
| OS060240300 | 1/2x3/8 | 22.50 | 4.76 | 4.76 | 9.00 |
| OS060240400 | 1/2x1/2 | 25.70 | 6.35 | 6.35 | 11.00 |
| OS060240500 | 1/2x5/8 | 28.88 | 7.96 | 7.96 | 12.00 |
| OS060240600 | 1/2x3/4 | 32.05 | 9.52 | 9.52 | 15.00 |
| OS060240700 | 1/2x7/8 | 35.20 | 11.10 | 11.10 | 16.00 |
| OS060241000 | 1/2x1 | 38.40 | 12.70 | 12.70 | 18.00 |
| OS060241100 | 1/2x1-1/8 | 43.58 | 14.29 | 14.29 | 20.00 |
| OS060241200 | 1/2x1-1/4 | 46.75 | 15.90 | 15.90 | 22.00 |
| OS060241300 | 1/2x1-3/8 | 49.93 | 17.46 | 17.46 | 23.00 |
| OS060241400 | 1/2x1-1/2 | 53.10 | 19.05 | 19.05 | 25.00 |
| OS060241500 | 1/2x1-5/8 | 56.26 | 20.64 | 20.64 | 25.95 |
| OS060241600 | 1/2x1-3/4 | 59.45 | 22.23 | 22.23 | 29.00 |
| OS060241700 | 1/2x1-7/8 | 62.63 | 23.81 | 23.81 | 29.00 |
| OS060242000 | 1/2x2 | 65.80 | 25.40 | 25.40 | 32.00 |
| OS060242100 | 1/2x2-1/8 | 68.97 | 26.98 | 26.98 | 33.40 |
| OS060242200 | 1/2x2-1/4 | 72.15 | 28.58 | 28.58 | 34.10 |
| OS060242300 | 1/2x2-3/8 | 75.32 | 30.16 | 30.16 | 36.70 |
| OS060242400 | 1/2x2-1/2 | 78.50 | 31.75 | 31.75 | 38.00 |
| OS060242500 | 1/2x2-5/8 | 81.67 | 33.33 | 33.33 | 39.80 |
| OS060242600 | 1/2x2-3/4 | 84.85 | 34.93 | 34.93 | 41.50 |
| OS060242700 | 1/2x2-7/8 | 88.02 | 36.51 | 36.51 | 43.10 |
| OS060243000 | 1/2x3 | 91.20 | 38.10 | 38.10 | 44.97 |
