SKU#: OST30401008
British System Round Shank Hex Shank& Quick Change Shank

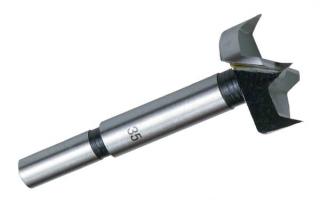

These bits bores pilot holes for rabbeting, mortising and grooving. Ideal for pocket holes, partial arcs and end grain holes
SPECIFICATIONS:

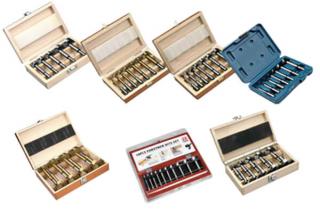

These bits bores pilot holes for rabbeting, mortising and grooving. Ideal for pocket holes, partial arcs and end grain holes. Drills smooth sides without splintering grain. Includes wooden carrying case. For 16pc, blow moulded case is available.
Titanium nitride runs cooler, cuts easier, and lasts longer than standard steel!

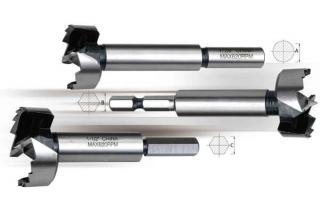

| Art No. | Size | Middle Shank Diameter | Small Shank Diameter | Overall Length | ||
| A | B | C | ||||
| 1001003 | 3/16" | 4.5 | 9.5 | 8.2 | 6.35 | 90 |
| 1001004 | 1/4" | 6.0 | 9.5 | 8.2 | 6.35 | 90 |
| 1001005 | 5/16" | 7.5 | 9.5 | 8.2 | 6.35 | 90 |
| 1001006 | 3/8" | 7.5 | 9.5 | 8.2 | 6.35 | 90 |
| 1001007 | 7/16" | 7.5 | 9.5 | 8.2 | 6.35 | 90 |
| 1001008 | 1/2" | 8.0 | 9.5 | 8.2 | 6.35 | 90 |
| 1001009 | 9/16" | 8.0 | 9.5 | 8.2 | 6.35 | 90 |
| 1001010 | 5/8" | 8.0 | 9.5 | 8.2 | 6.35 | 90 |
| 1001011 | 11/16" | 8.0 | 9.5 | 8.2 | 6.35 | 90 |
| 1001012 | 3/4" | 10.0 | 9.5 | 8.2 | 6.35 | 90 |
| 1001013 | 13/16" | 10.0 | 9.5 | 8.2 | 6.35 | 90 |
| 1001014 | 7/8" | 10.0 | 9.5 | 8.2 | 6.35 | 90 |
| 1001015 | 15/16" | 10.0 | 9.5 | 8.2 | 6.35 | 90 |
| 1001016 | 1" | 12.0 | 9.5 | 8.2 | 6.35 | 90 |
| 1001017 | 1-1/16" | 12.0 | 9.5 | 8.2 | 6.35 | 90 |
| 1001018 | 1-1/8" | 12.0 | 9.5 | 8.2 | 6.35 | 90 |
| 1001019 | 1-3/16" | 12.0 | 9.5 | 8.2 | 6.35 | 90 |
| 1001020 | 1-1/4" | 12.0 | 9.5 | 8.2 | 6.35 | 90 |
| 1001021 | 1-5/16" | 12.0 | 9.5 | 8.2 | 6.35 | 90 |
| 1001022 | 1-3/8" | 12.0 | 9.5 | 8.2 | 6.35 | 90 |
| 1001023 | 1-7/16" | 12.0 | 9.5 | 8.2 | 90 | |
| 1001024 | 1-1/2" | 15.0 | 9.5 | 8.2 | 90 | |
| 1001025 | 1-9/16" | 15.0 | 9.5 | 8.2 | 90 | |
| 1001026 | 1-5/8" | 15.0 | 9.5 | 8.2 | 90 | |
| 1001027 | 1-11/16" | 15.0 | 9.5 | 8.2 | 90 | |
| 1001028 | 1-3/4" | 15.0 | 9.5 | 8.2 | 90 | |
| 1001029 | 1-13/16" | 15.0 | 9.5 | 8.2 | 90 | |
| 1001030 | 1-7/8" | 15.0 | 9.5 | 8.2 | 90 | |
| 1001031 | 1-15/16" | 15.0 | 9.5 | 8.2 | 90 | |
| 1001032 | 2" | 15.0 | 9.5 | 8.2 | 90 | |
| 1001033 | 2-1/16" | 15.0 | 9.5 | 8.2 | 90 | |
| 1001034 | 2-1/8" | 15.0 | 9.5 | 8.2 | 90 | |
| 1001036 | 2-1/4" | 15.0 | 12.7 | 11.0 | 157 | |
| 1001037 | 2-5/16" | 15.0 | 12.7 | 11.0 | 157 | |
| 1001038 | 2-3/8" | 15.0 | 12.7 | 11.0 | 157 | |
| 1001040 | 2-1/2" | 17.5 | 12.7 | 11.0 | 157 | |
| 1001042 | 2-5/8" | 17.5 | 12.7 | 11.0 | 157 | |
| 1001044 | 2-3/4" | 17.5 | 12.7 | 11.0 | 157 | |
| 1001046 | 2-7/8" | 19.0 | 12.7 | 11.0 | 157 | |
| 1001048 | 3" | 19.0 | 12.7 | 11.0 | 157 | |
| 1001050 | 3-1/8" | 19.0 | 12.7 | 11.0 | 157 | |
| 1001052 | 3-1/4" | 20.5 | 12.7 | 11.0 | 157 | |
| 1001054 | 3-3/8" | 20.5 | 12.7 | 11.0 | 157 | |
| 1001056 | 3-1/2" | 20.5 | 12.7 | 11.0 | 157 | |
| 1001058 | 3-5/8" | 20.5 | 12.7 | 11.0 | 157 | |
| 1001060 | 3-3/4" | 20.5 | 12.7 | 11.0 | 157 | |
| 1001062 | 3-7/8" | 20.5 | 12.7 | 11.0 | 157 | |
| 1001064 | 4" | 22.0 | 12.7 | 11.0 | 157 | |
| 1001066 | 4-1/8" | 22.0 | 12.7 | 11.0 | 157 | |
| 1001068 | 4-1/4" | 22.0 | 12.7 | 11.0 | 157 | |
| 1001070 | 4-3/8" | 22.0 | 12.7 | 11.0 | 157 | |
| 1001072 | 4-1/2" | 22.0 | 12.7 | 11.0 | 157 | |
